Stickable Strain Gauge

Tax included. Shipping calculated at checkout.
Ürün için teklif al

Strain gauges are widely used in many measurement applications both static and dynamic. A strain gauge is also sometimes called an electrical resistance strain gauge or simply a resistance strain gauge. They are also used in dynamic measurement applications where output fluctuates greatly due to deformation of a mechanical object under test. It is widely used for objects subjected to stress and torsion. The property called “strain” is the ratio of the change in length of an object to its original length. A strain gauge can measure this amount of change caused by an external force and convert it into an electrical signal that can then be converted to digital values, displayed, collected and analysed.

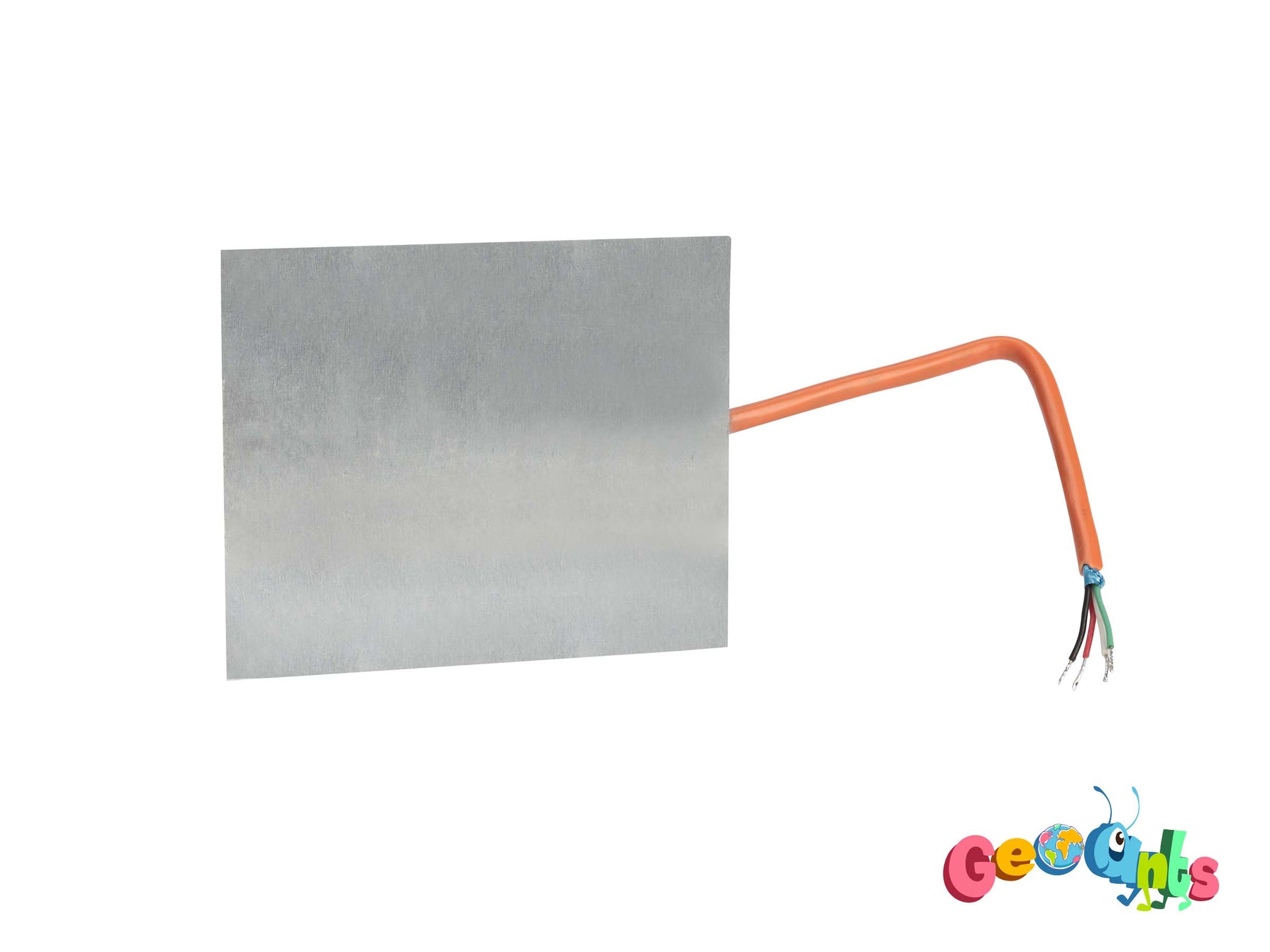

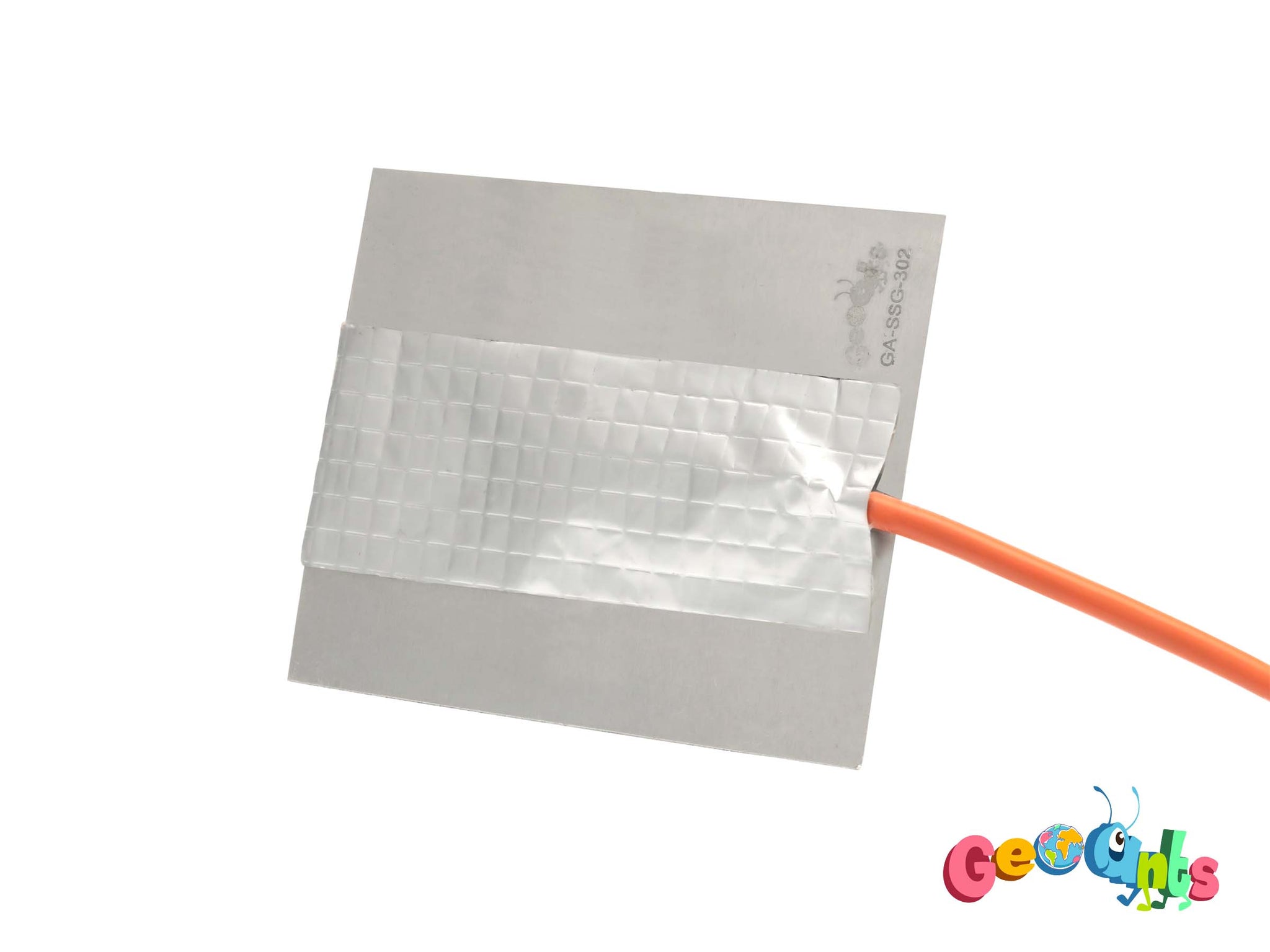

GeoAnts SSG (Stickable Strain Gauge) is a structure made of an aluminum body that contains a strain gauge on its inner side. The strain gauge is adhered to the surface to be measured with a strong adhesive (epoxy). The strain effects that the section is exposed to are transmitted to the body and the strain gauge. The mechanical changes, together with the instantaneous strain changes that occur, are reflected as a signal output to the measurement unit. The deformation or stress in the section can be easily calculated depending on the scaling factor. No welding is required from installation to measurement.

Click here to view the technical documentation of the product.

 Technical Specifications

 Sensor Type Resistive Type Strain Gauge
Measuring Range 3000 µε (± 1500 µε )
Output Rate 2 mV/V
Accuracy ± 0.8% F.S
Nonlinearity Rate ± 2.0% F.S
Length Customizable
Recommended Excitation Voltage (4-10) V
Working Temperature -25 oC - 80 oC
Waterproof IP68
Material Aluminum
Resistance 350 Ω

 *F.S: Full Scale
