The Wireless Portable FastDAQ is a device designed for field use in geotechnical engineering and structural engineering. It has rechargeable batteries that provide 8 hours of continuous use on a single charge.

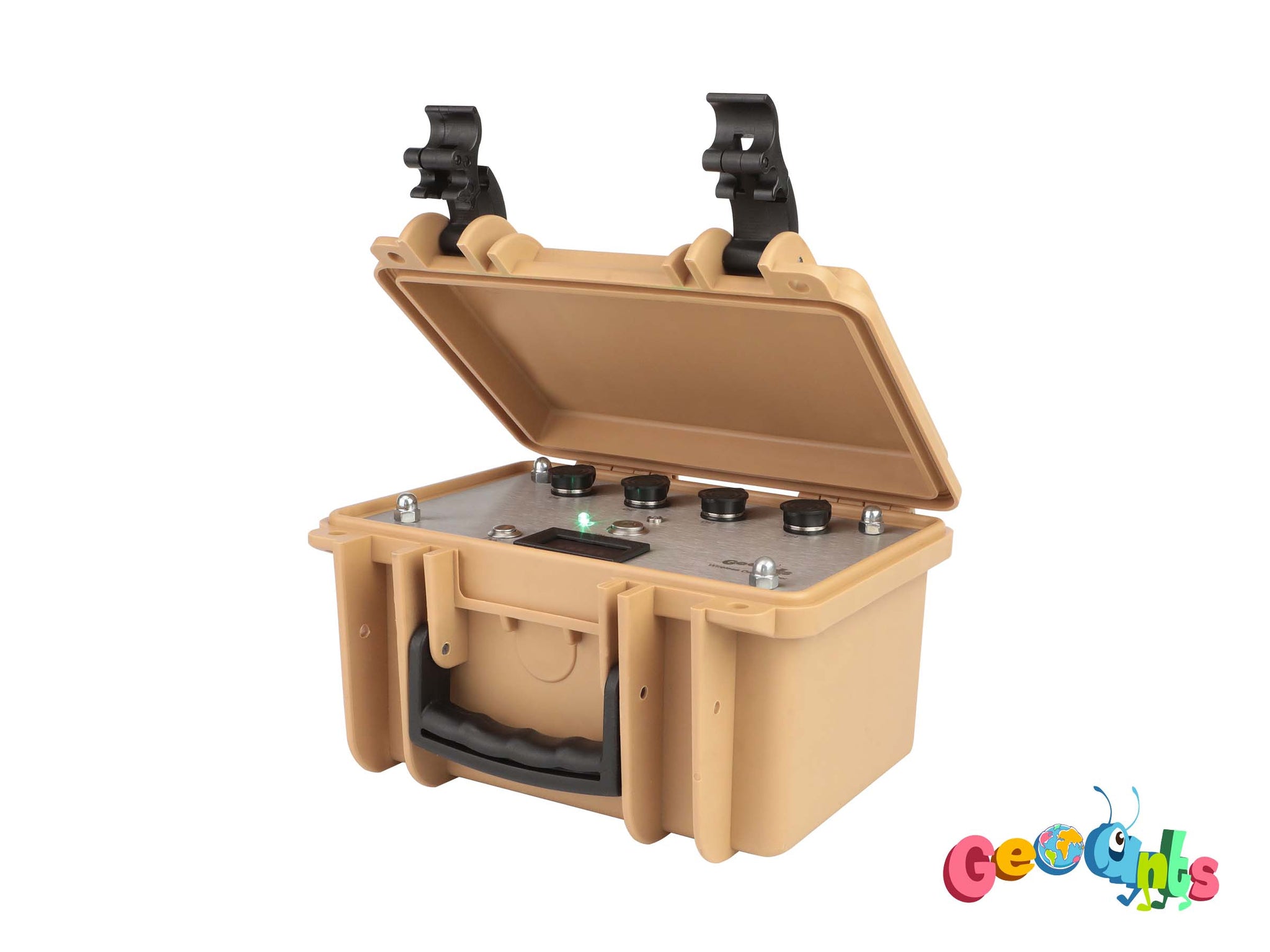

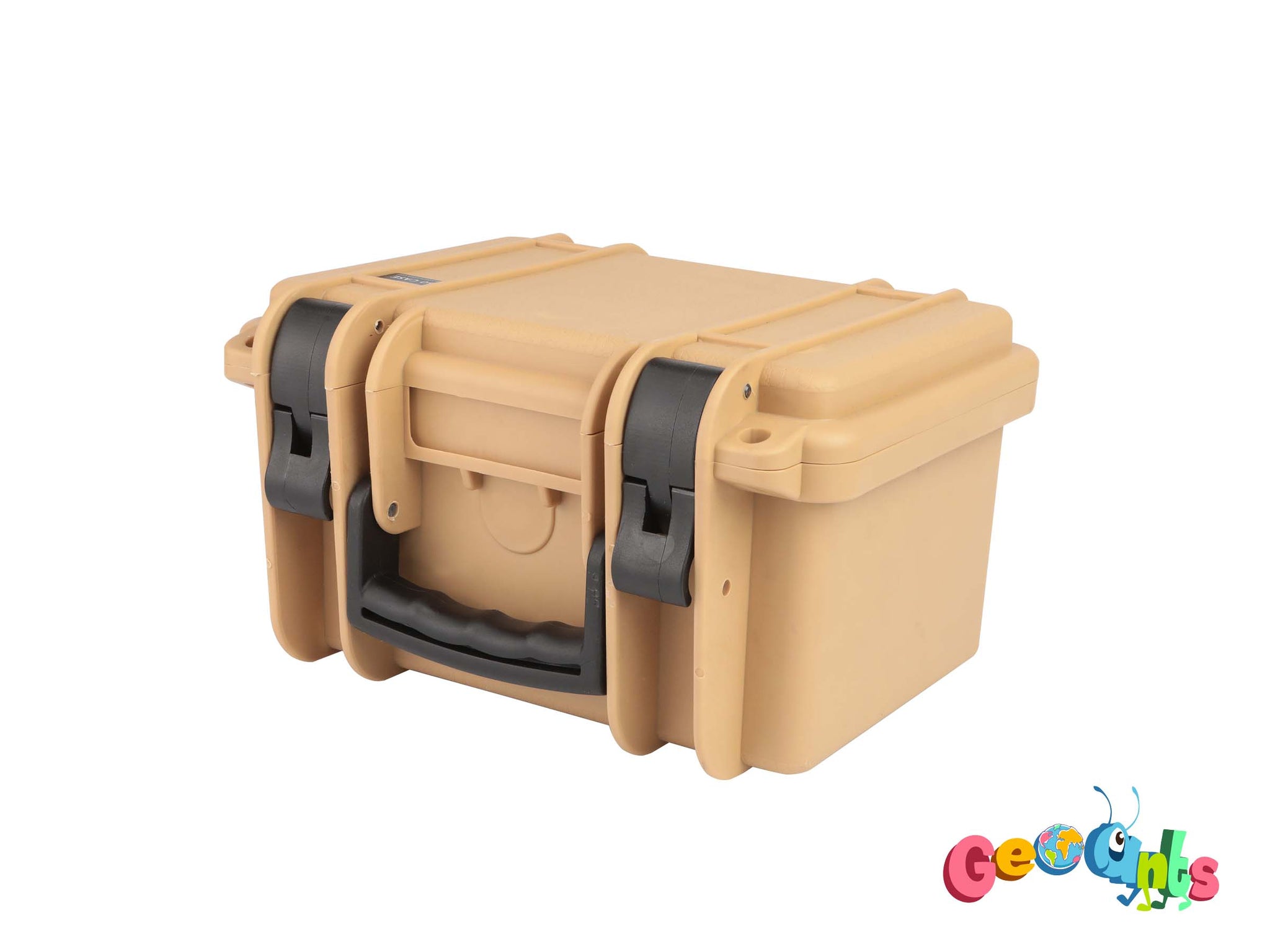

The data logger can be connected to various sensors such as LVDTs, load cells, strain gauges, total earth pressure cells, and piezometers to collect data in the field. The data can then be transmitted via Bluetooth in .CSV format to an Android smartphone or laptop, making field data recording easy and reliable. The data logger is housed in a rugged plastic enclosure that facilitates transport and use in challenging field environments.

The GeoAnts Wireless Portable FastDAQ device is a suitable and efficient solution for collecting and transmitting data in geotechnical and structural instrumentation.


Technical Specifications:

 Measuring Range Varies according to sensor capacity
Sampling Rate  0.5 Hz (1 data in 2 seconds)
Working Temperature 0-40 oC
Power supply Rechargeable Lithium battery 10400mAh (up to 8 hours on a single charge)
ADC 24-bit for load cell and 12-bit for LVDT
Material Reinforced Plastic Case
Software Android-based application and Windows-based application
Wireless Range Supported up to 50 meters



To download the Technical Specifications Page, please click here.

To download the GeoGram Mobile Application, click here.

Click here for the product usage video.



You can contact us at the addresses below for detailed information about the product.
