Explanation

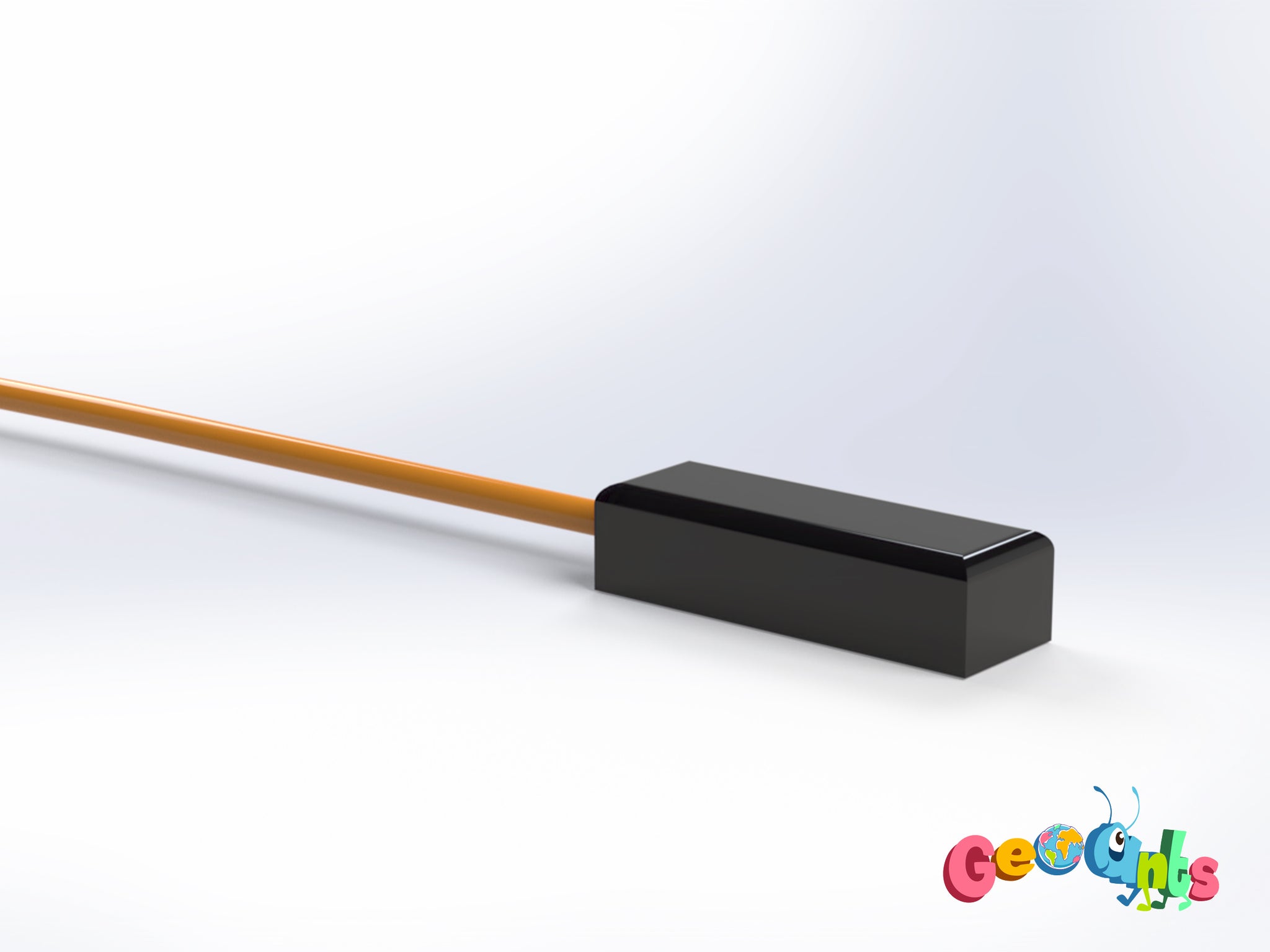

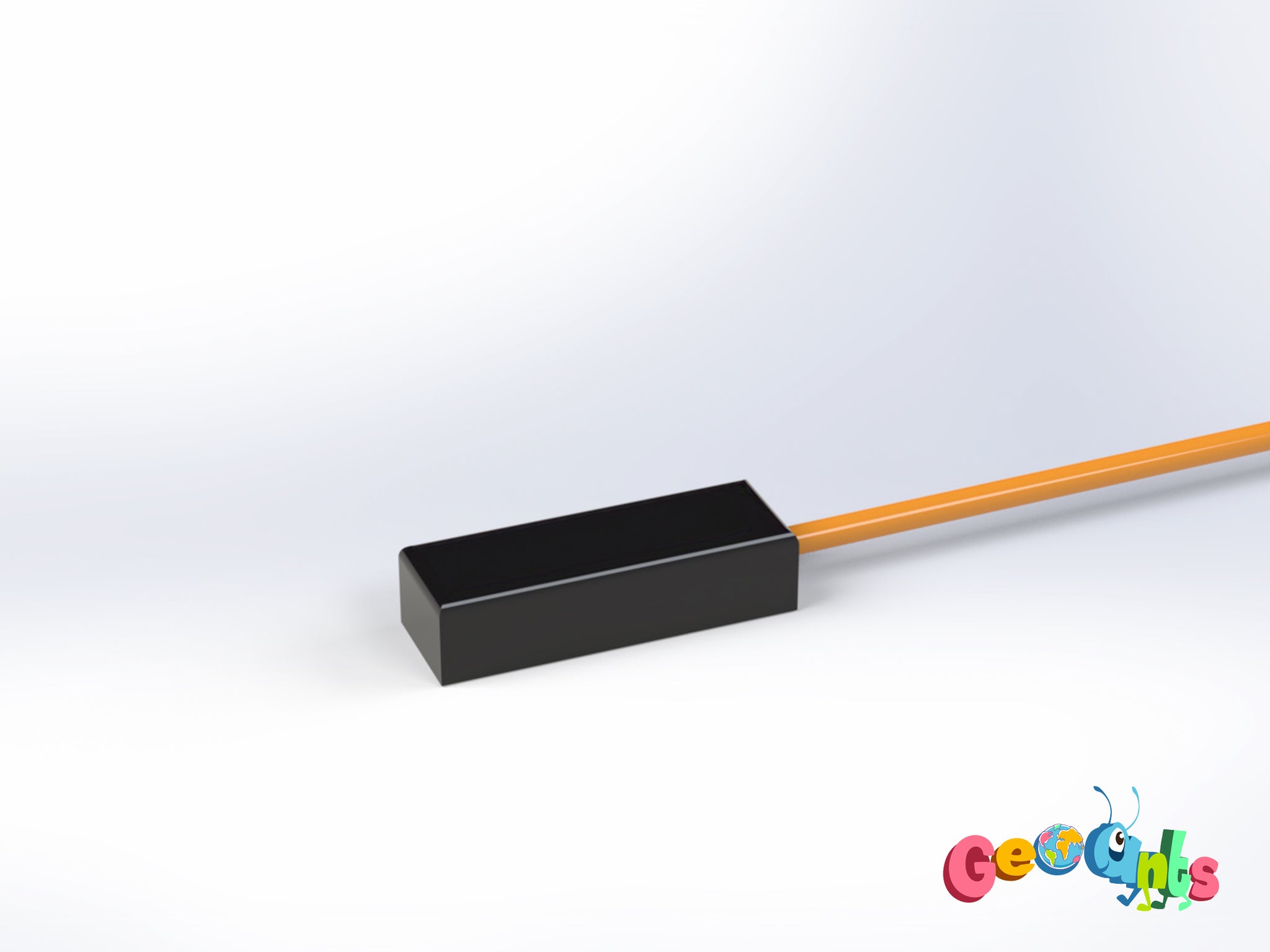

The spot-welded strain gauge consists of a coil housing in which two small strain coils are fixed, and two end flanges connected by a tube. The vibrating wire of the VW spot-weldable strain gauge is tensioned between two end blocks that are spot-welded to the surface of the steel element. The wire is adjusted to vibrate at its resonance frequency. This frequency depends on the tension of the wire, which will change as the tension in the steel element changes. To obtain long-term healthy readings, the spot-welded surface must be sanded flat and then the welding process should be carried out. The strain gauge is equipped with a temperature device to compensate for temperature changes.
Model
Standard
Standard Model Vibrating Wire point-sourced strain gauges are designed to measure stress in steel structures such as bridges, piles, tunnel linings, and buildings.
Heavy Duty Type
Other Model VW point strain gauges are more useful in case there are any restrictions in the working area. The measurement range of the model is 5000με.
Technical Specifications
| Measuring Range | ±3300 with |
| Resolution | 0.5 with |
| Truth | ±0.1% F.S. |
| Temperature Range | -40°C to +80°C |
| Sensor Material | Stainless steel |
| Dimension Length | 51.5 mm |
You can contact us at the addresses below for detailed information about the product.
