Three-Way Circular Simple Cutting Device
Three-Way Circular Simple Cutting Device
Three-Way Circular Simple Cutting Device
Three-Way Circular Simple Cutting Device
  • Load image into Gallery viewer, Three-Way Circular Simple Cutting Device
  • Load image into Gallery viewer, Three-Way Circular Simple Cutting Device
  • Load image into Gallery viewer, Three-Way Circular Simple Cutting Device
  • Load image into Gallery viewer, Three-Way Circular Simple Cutting Device

Three-Way Circular Simple Cutting Device

Tax included. Shipping calculated at checkout.
Ürün için teklif al

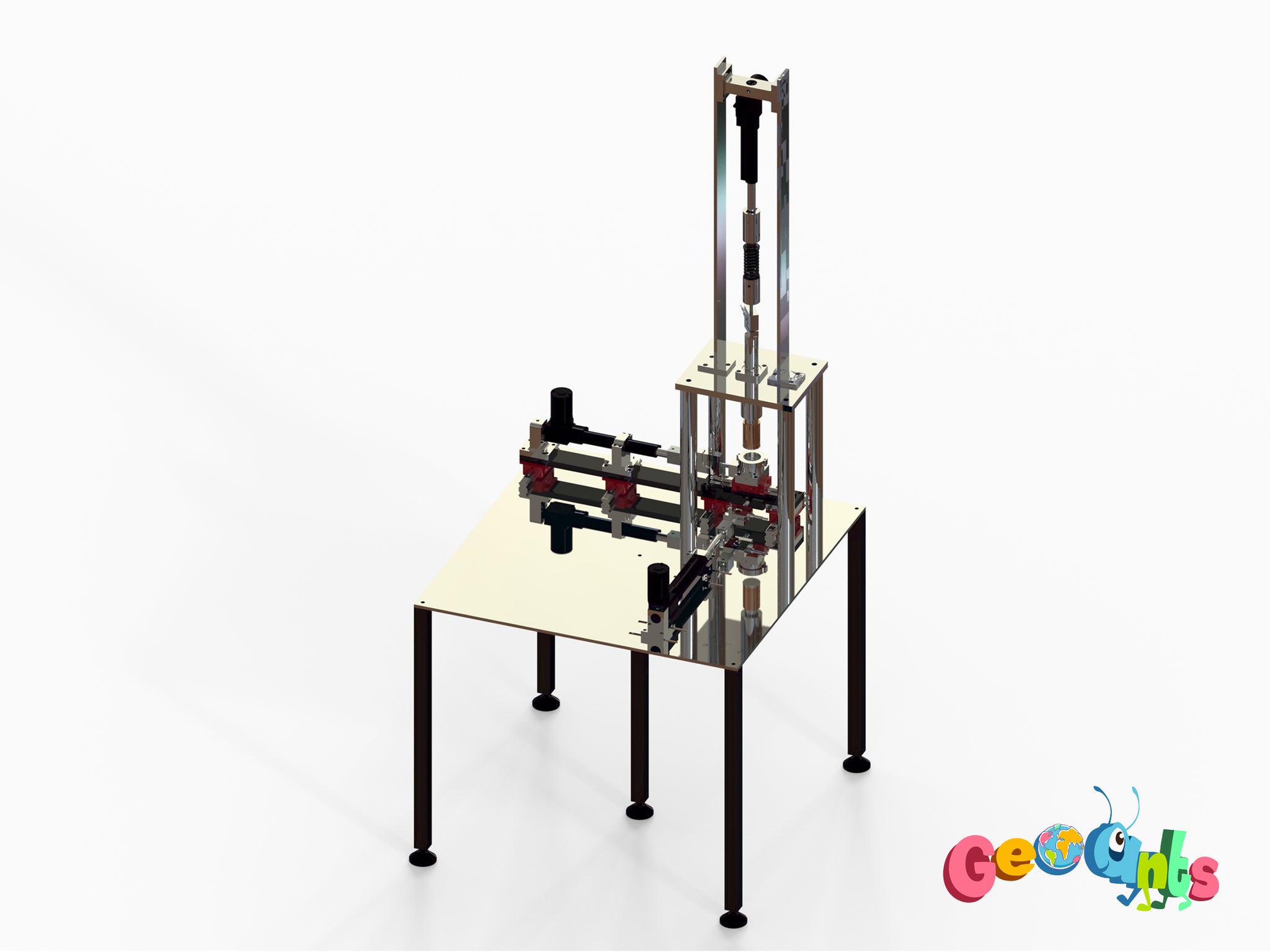

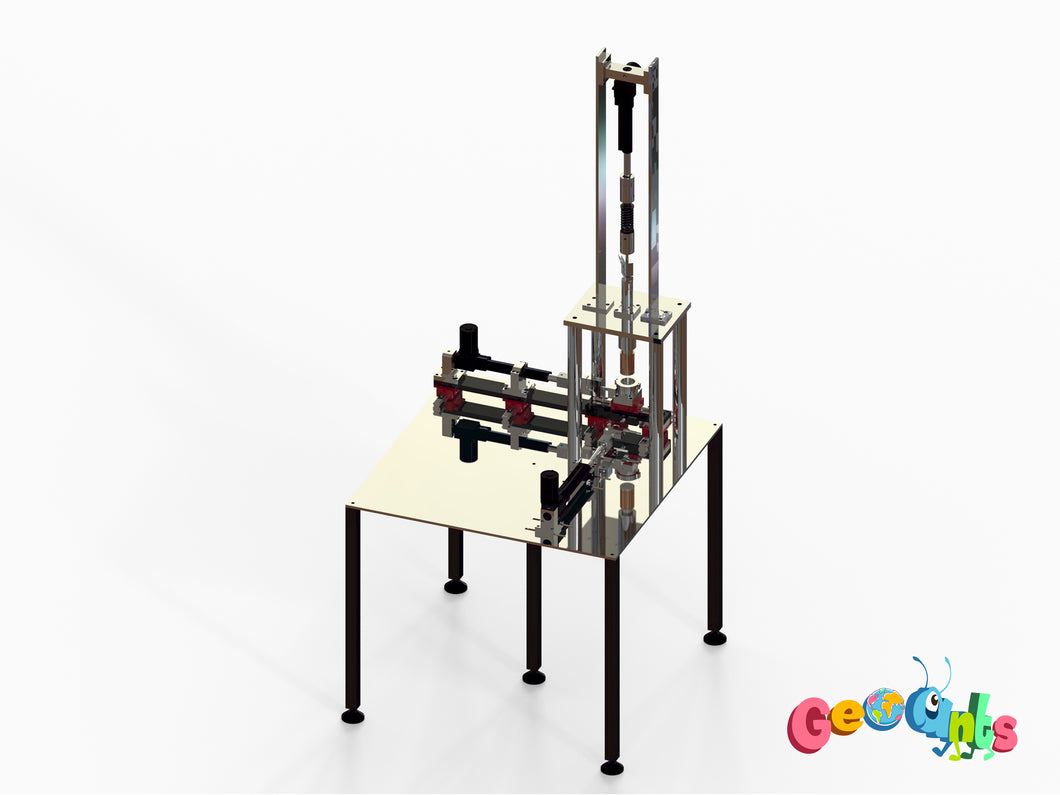

A computer-controlled Cyclic Simple Shear Apparatus that allows for the examination of soil behavior in the most realistic way by simulating many different loading conditions.

Example Use Cases

The application of both components of strong ground motion to the sample in the form of Cyclic Stress Ratio (CSR) or strain rate-time histories.

Simulating 3D cyclic loads and displacements for floors.

Evaluation of liquefaction triggering and sensitivity considering 3B loads and displacements.

Technical Specifications

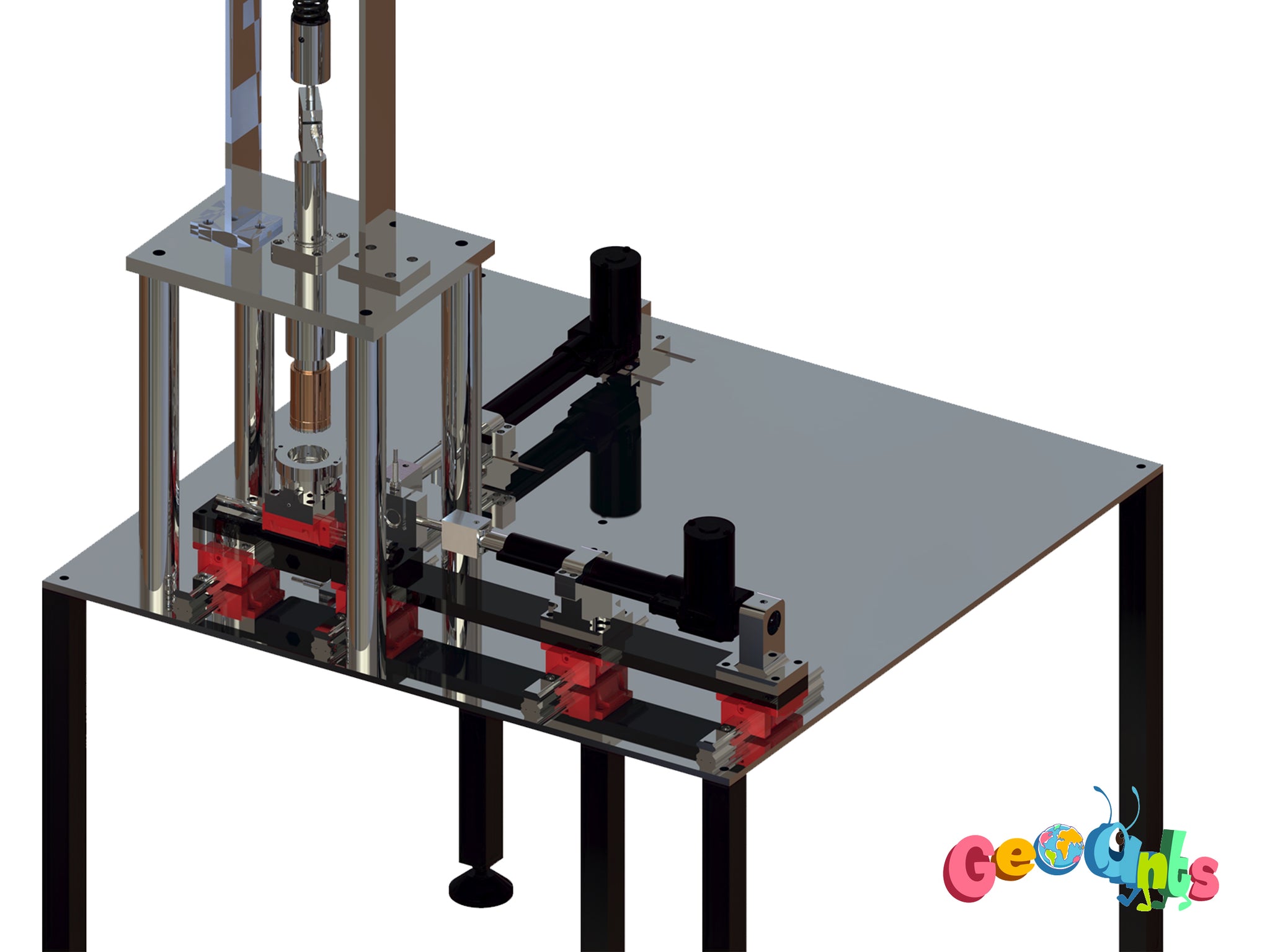

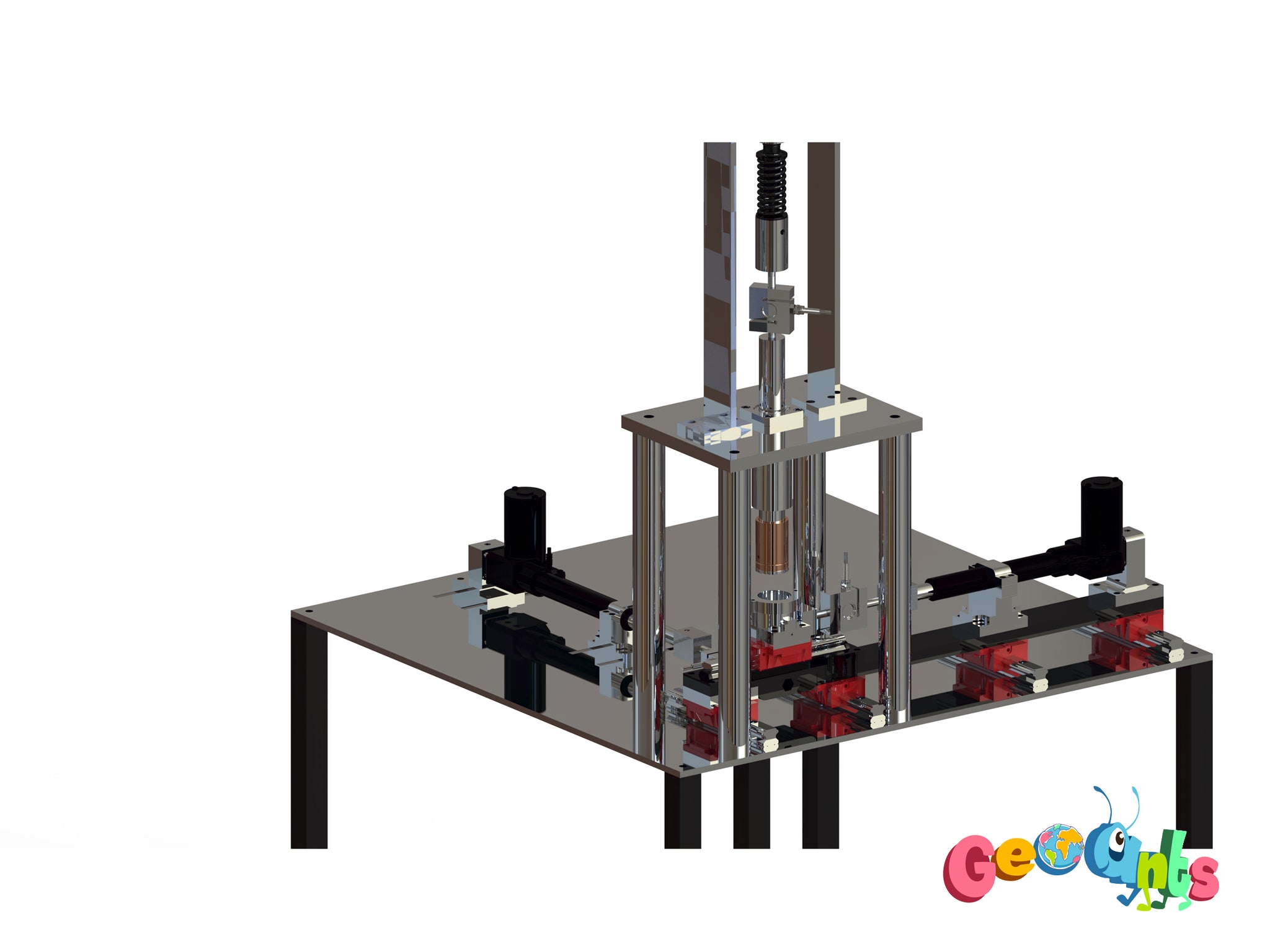

The frame: a steel box frame mounted on the ground, containing three horizontal and vertical electric linear actuators, the top cover is fixed and mounted on base roller bearings.

Maximum Loading 6 kN vertical and horizontal
Sample Size 50 mm Diameter - 20 mm Height
Sample Size Limitation Aluminum teflon coated ring stack
Working Frequency Up to 2 Hz (customizable)
General Dimensions 1000x1000x1700 m³
Electrical Properties 240 or 110 V - 50-60 Hz, single phase
Approximate Weight

450 kg

Sensors

• 3 pieces of 5kN load cell.
• 3 pieces of 25 mm LVDT.
• Void water pressure transducer

Control

Tensile and strain control tests can be performed with the GeoAnts Controller.

Data Recording

8-channel FastDAQ data recorder with SD card backup data recording using the free data logging software GeoGram.

Security features

• Upper and lower stop switch to stop the actuator's excessive movement.
• Left and right stop switch mechanism to stop the actuator's excessive movement.
• Internal software safety shutdown when sensors reach maximum.
• External emergency stop, overcurrent and overtemperature shutdown protection.



To review the Technical Specifications Page, please click here.



You can contact us at the addresses below for detailed information about the product.

geoants@geodestek.com
T: +90 552 350 13 99
WhatsApp Information-Order Line

www.geodestek.com
