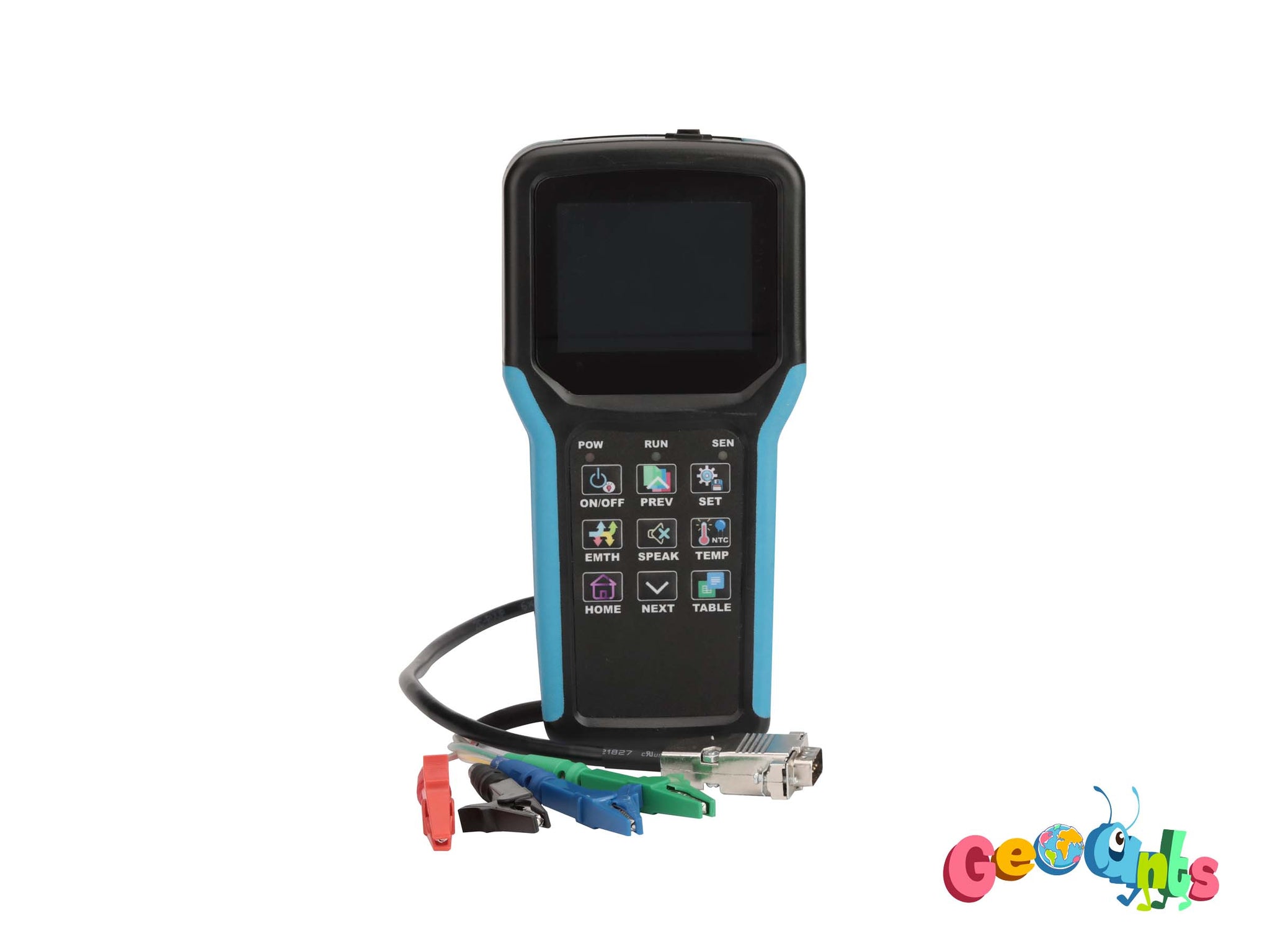

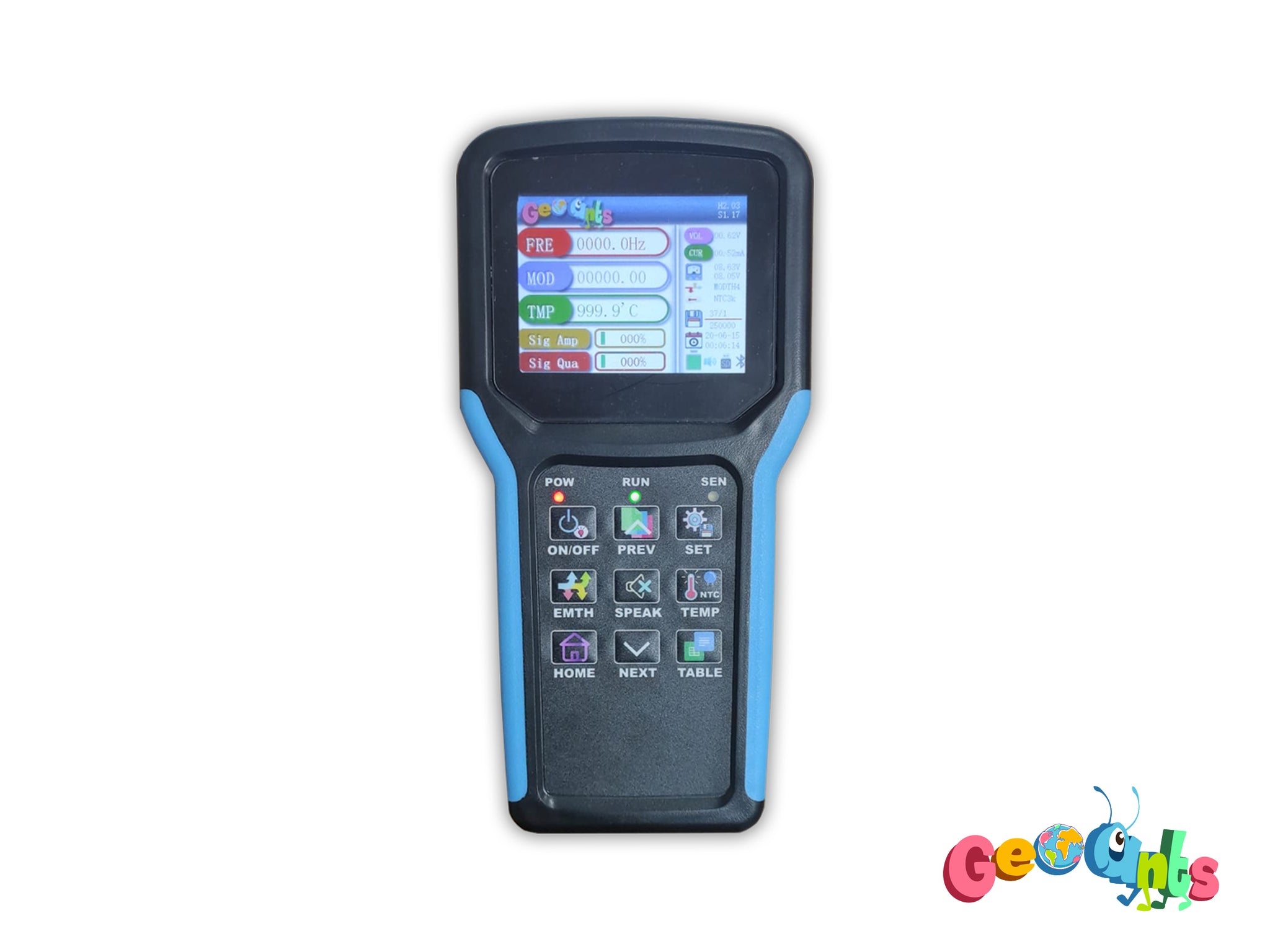

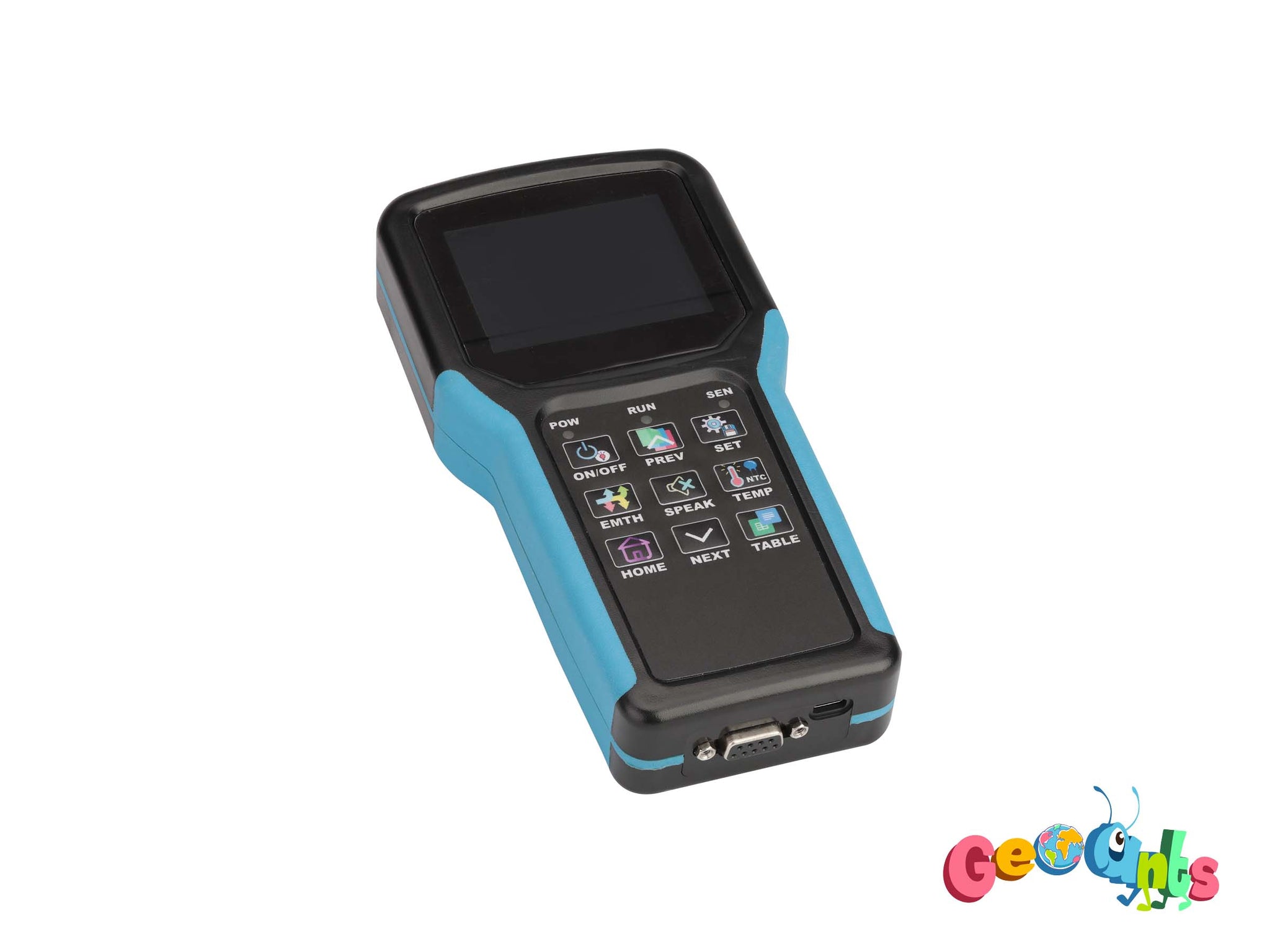

The GeoAnts vibrating wire reading unit is an extremely precise instrumental system used for measurement. This reading unit captures measurements performed on vibrating wires in real-time, displaying the measurement results instantly on the screen. Thus, while saving time and effort during the measurement process, the accuracy of the results is also increased.
The GeoAnts vibrating wire reading unit can perform measurements on vibrating wires in both low and high frequency ranges. It processes the measurement results efficiently and presents them to the user in real-time. The GeoAnts vibrating wire reading unit has an interface that provides convenience to users, and for this reason, the end user does not need expert support for measurements.
Technical Specifications:
| Dimensions | 209 mm x 100 mm x 35 mm |
| IP class | IP53 |
| Power supply | AA battery X 4 or lithium battery |
| Lithium battery capacity | 3000mAh |
| Waiting time | 15~30@Lithium time |
| Usage temperature | -20 ~ 80 °C |
| Storage temperature | -60 ~120 °C |
| Screen resolution | 480 pix x 320 pix |
| Storage capacity | 8 MB |
| Frequency range | 300 ~ 6000 Hz |
| NTC3k range | -20 ~120 °C |
| Frequency sensitivity | ±0.2 Hz |
| Temperature sensitivity | ±0.5 °C |
You can contact us at the addresses below for detailed information about the product.
For the product usage video, click here.
