About the Product
The product is available in our inventory. It has been used for a short period in geotechnical laboratory services, therefore it is in second-hand condition. It is functionally ready for use. For detailed information about the product, you can contact us at the addresses below.
geoants@geodestek.com
T: +90 (312) 4601399
WhatsApp Information-Order Line
www.geodestek.com
Product Code

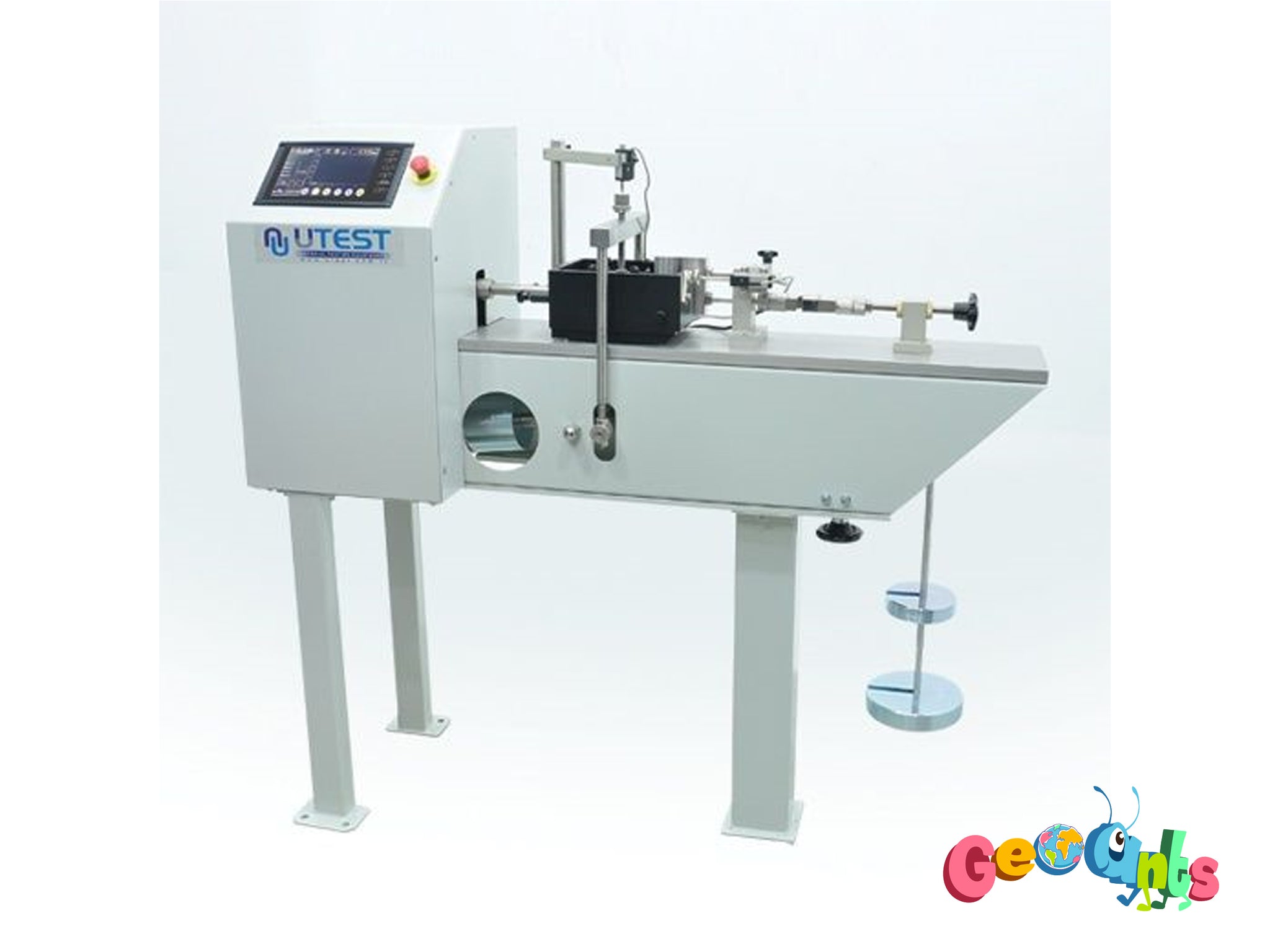

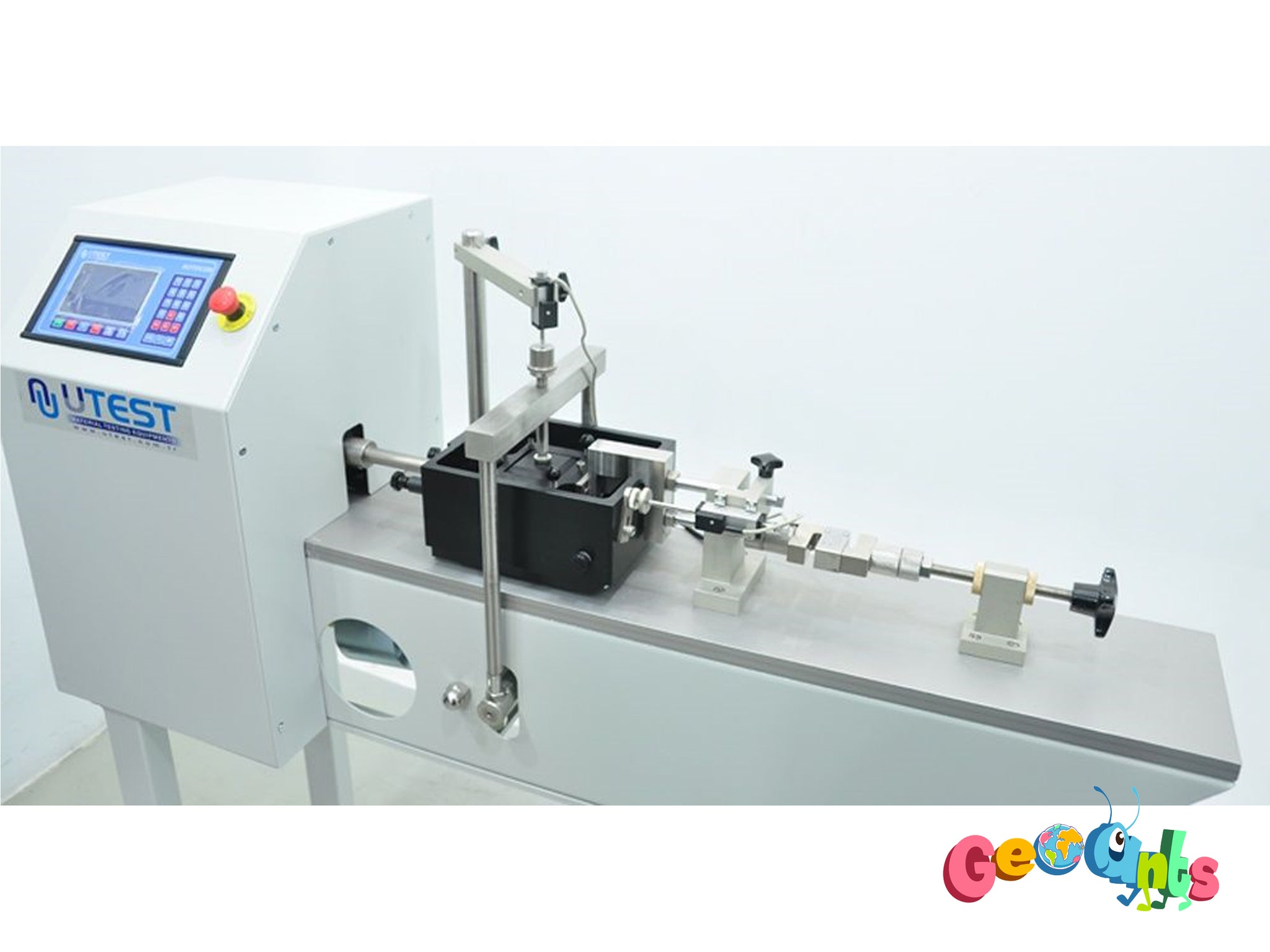

UTS-2060 Automatic Direct Cutting / Residual Resistance Testing Device, with digital speed control and data collection (BC 100 digital control unit), speed adjustable in the range of 0.00001 - 9.000000 mm/min with a servo motor, large screen LCD control, loading arm with ratios of 1/9, 1/10, 1/11, 5 kN load cell, 25 x 0.0001 mm linear potentiometric length change measurement sensor (for horizontal displacement), 10 x 0.001 mm linear potentiometric length change measurement sensor (for vertical displacement) and software included. Cutting box set, weight set, sample cutter, and sample pusher apparatus must be ordered separately.
220-240V, 50-60Hz, 1 phase
Cutting Box Set Product Code
UTS-2065 Cutting Box Set, 60x60mm, rigid side wall cutting box, loading block (back side corrugated), corrugated plate, along with 2 pieces of porous stones. Sample cutter and sample pusher apparatus must be ordered separately.
UTS-2066 Cutting Box Set, Ø60mm, rigid side-walled cutting box, loading block (back side corrugated), corrugated plate, along with 2 pieces of porous stones. Sample cutter and sample pusher apparatus must be ordered separately.
Sample Cutter Product Code
UTS-2070 Sample Cutter, 60 x 60 mm
UTS-2074 Sample Cutter, Ø60 mm
Sample Pusher Device Product Code
UTS-2072 Sample Pusher Apparatus, 60 x 60 mm
UTS-2076 Sample Pusher Apparatus, Ø60 mm
