LVDT is the abbreviation for Linear Variable Differential Transformer. It is a common type of electromechanical transducer that can convert the linear motion of an object to which it is mechanically connected into a corresponding electrical signal. LVDT linear position sensors are ready-made displacement gauges that can measure movements as small as a few thousandths of a millimeter.
The product price specified as the connection header is valid for the green colored header.
Please contact us for a different connection header option.
*The price given for Klemens includes labor.

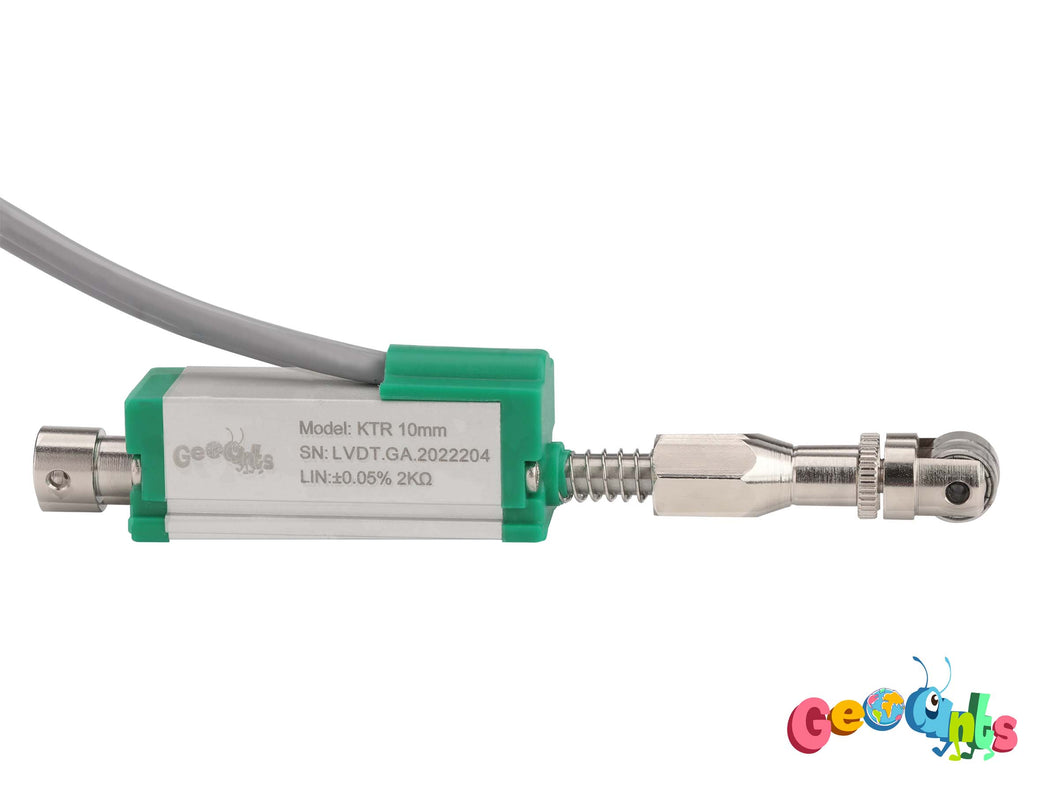

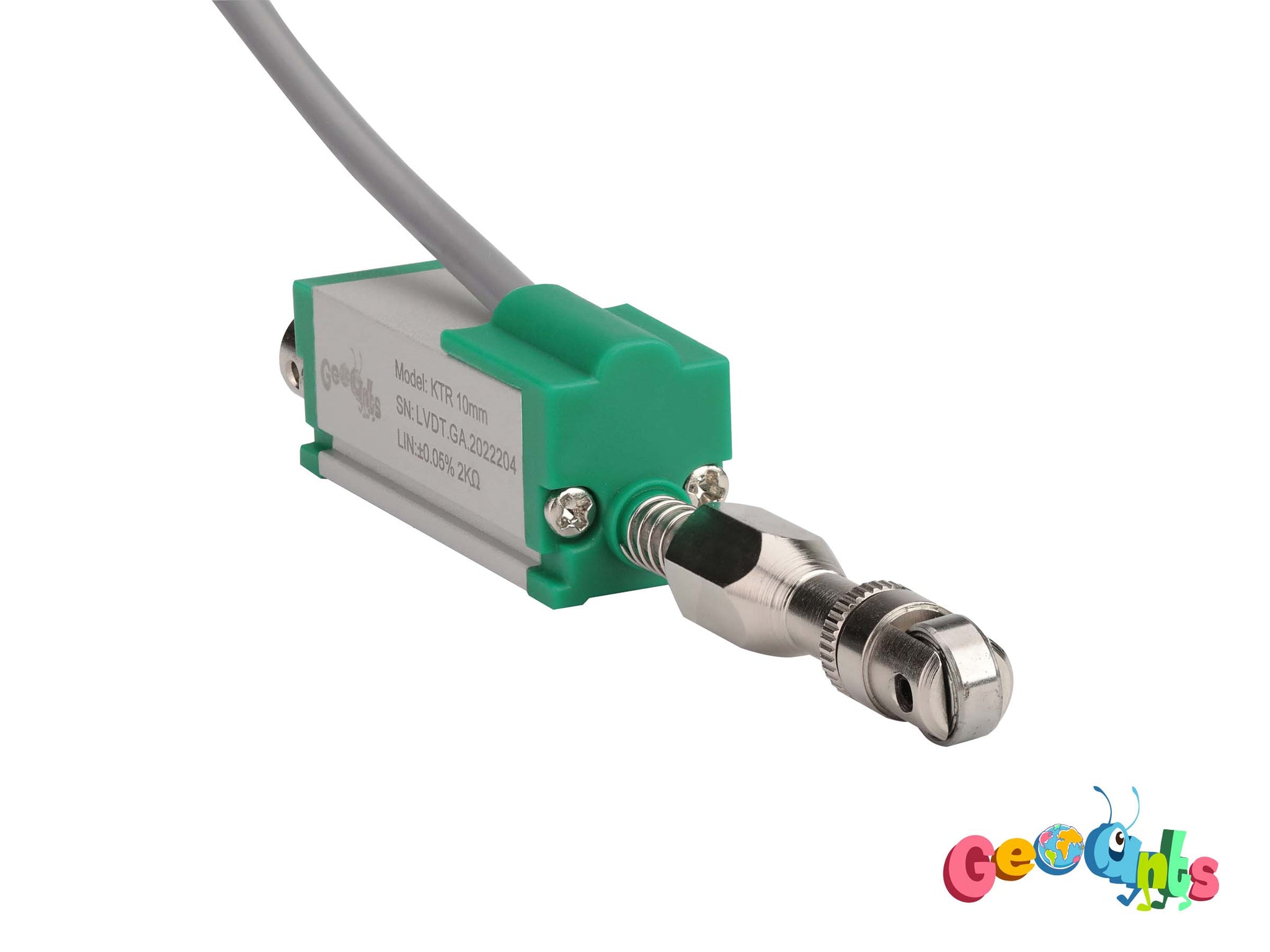

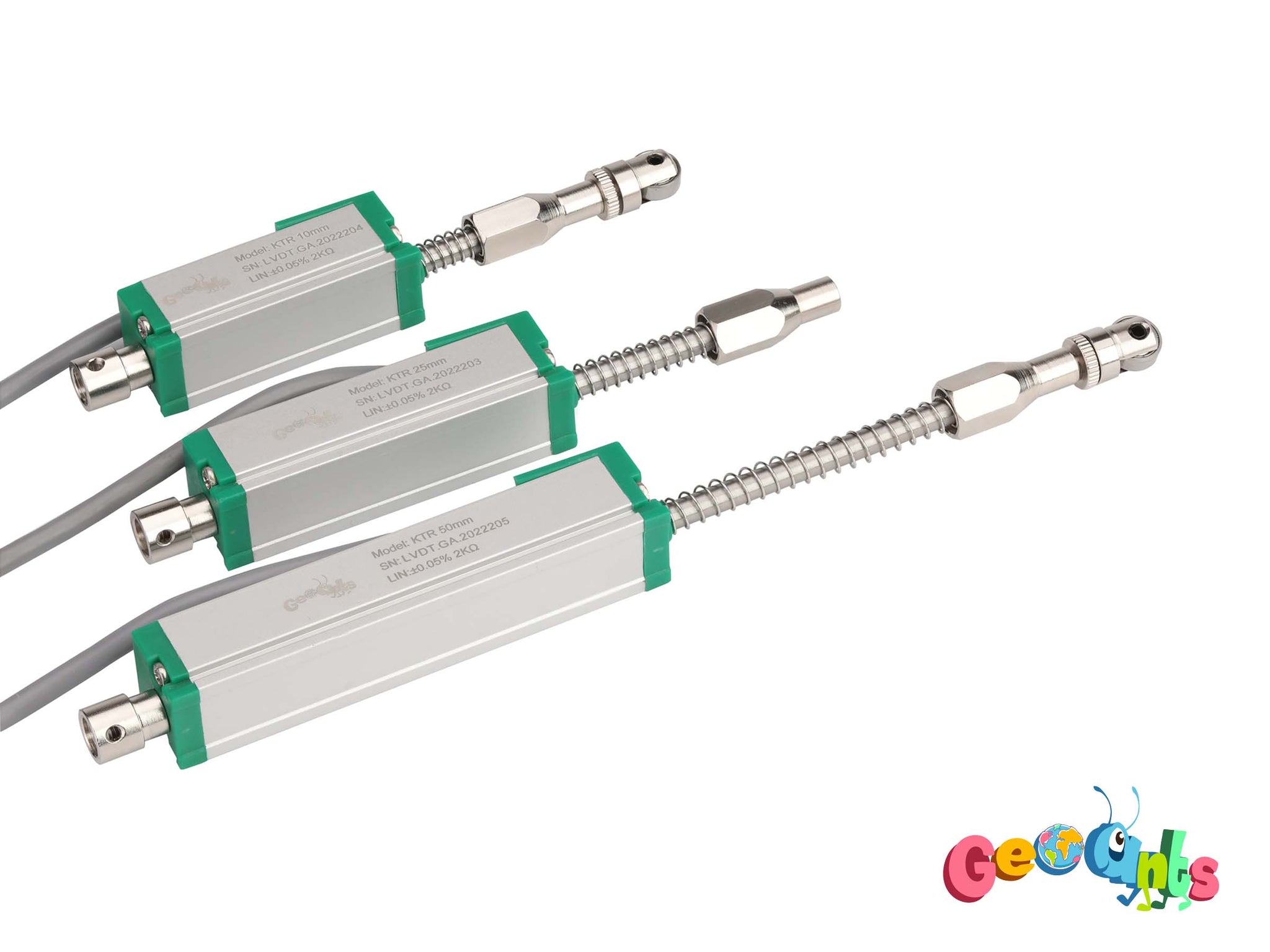

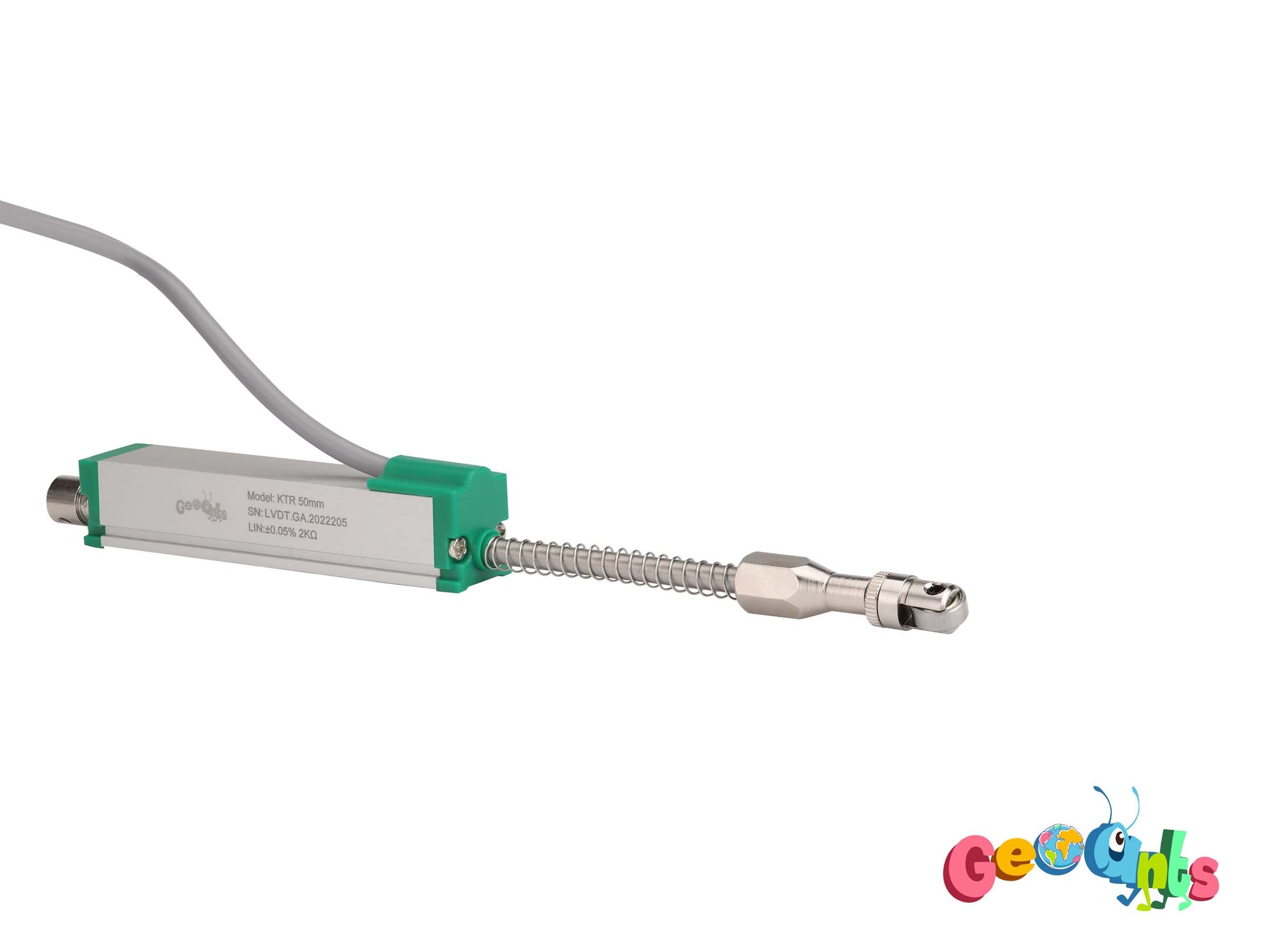

Linear Displacement Sensor
|
Linear Sensitivity (+/-FS) |
0.05% |
|
Linear Sensitivity |
0.1 |
|
Repetition Accuracy |
0.01mm |
|
Working Voltage |
(5 kΩ - 20 kΩ for): 24VDC |
|
Temperature Ratio |
Greater than or equal to 1.5 ppm per degree Celsius (°C) |
|
Ambient Temperature |
-30°C~ +125°C |
|
Load Characteristics |
Equal to or greater than 1 kΩ |
|
Output Type |
From 0 to operating voltage (voltage change with moving variation) |
| Connection cable length | 90 cm |
