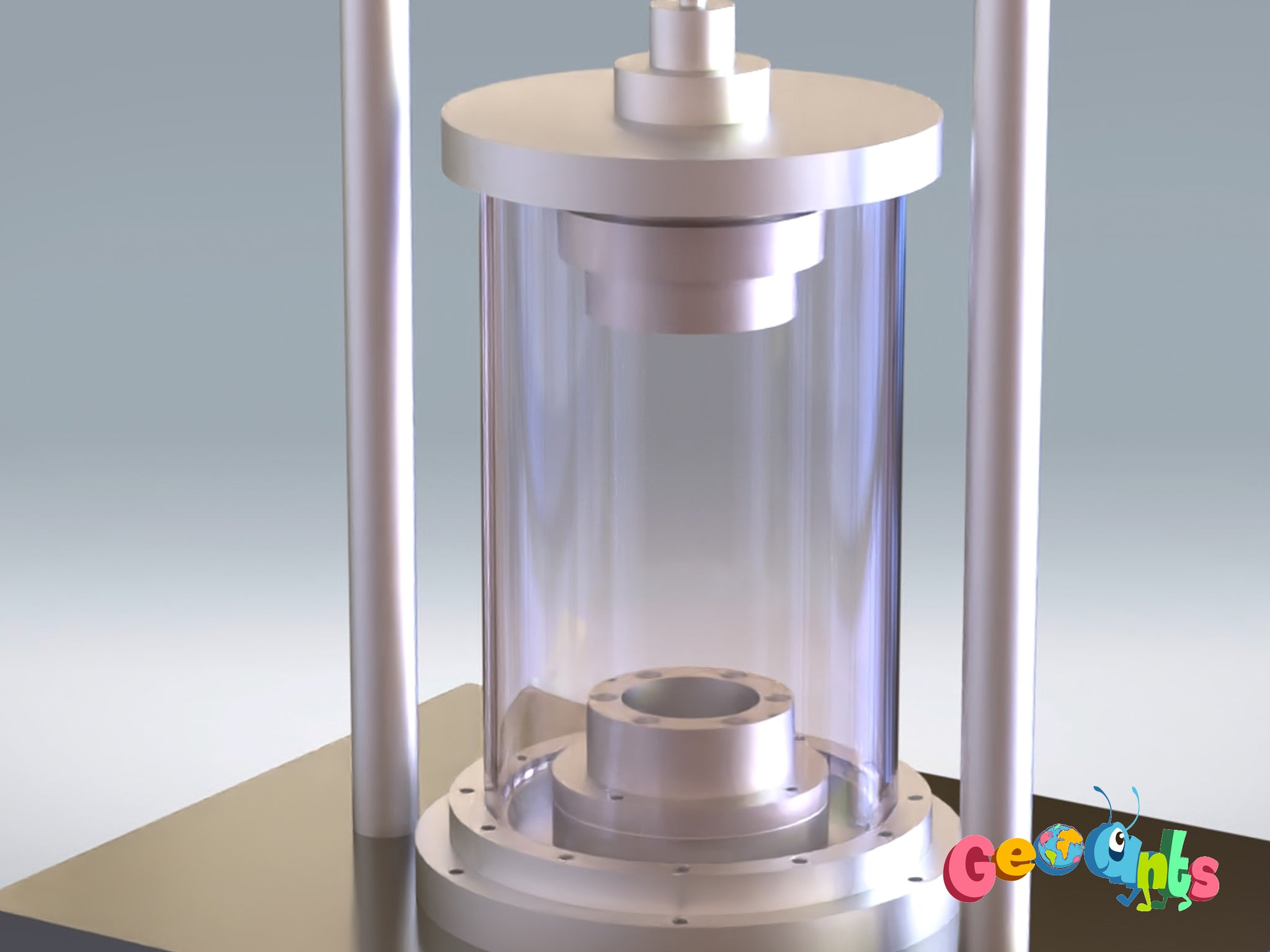

Hollow Core – A computer-controlled Cyclic Torsional Shear Test Device to investigate the soil behavior under static or cyclic loading conditions.
Features
- Conventional three-axis features (back pressure saturation under drained and undrained conditions, consolidation, and axial shear stages).
- The ability to control the three fundamental stresses affecting the soil (for example, 𝜎1, 𝜎2, 𝜎3).
- Option to perform torsional monotonic shear to examine the static shear strength of the soil.
- Option to perform torsional cyclic shear to investigate cyclic resistance and liquefaction.
- Option to measure shear strength after liquefaction.
What Can Be Done?
- Twisting shear at a suitable strain level in the frequency range of 0.0125 Hz to 2 Hz.
- Strain/stress controlled user-defined irregular loading/strain tests.
- Consolidation under isotropic and anisotropic conditions.
- Three-axis or stress path shear test after the bending cut.
Data recording
8-channel FastDAQ data recorder with SD card backup data recording using the free data logging software GeoGram.
Control
With the GeoAnts Controller software, stress and strain control tests can be performed.
Security features
Upper and lower limit switch to stop the actuator's excessive movement.
Left and right stop switch mechanism to stop the actuator's excessive movement.
Built-in software safety shutdown when sensors reach maximum.
External emergency stop, overcurrent and overtemperature shutdown protection.
Technical Specifications
| Sample Outer Diameter | 150 mm |
| Sample Inner Diameter | 100 mm |
| Hopper (Cell Capacity) | up to 1.7 MPa |
| Load Frame Capacity | 50 kN |
| Return Pressure Capacity | up to 1 MPa |
| Axial Load Capacity | Up to 10 Kn |
| Torque Capacity | 300 Nm |
| Loading Frequency | Up to 2 Hz for the bending cyclic shear phase |
| Monotonic Test Features | As a standard feature, consolidated, unconsolidated, drained, undrained triaxial and stress path testing up to 10% axial strain and shear stress up to 30%. |
| Cyclic Test Features | Consolidated, unconsolidated, drained, undrained three-axis and standard feature stress path testing for up to 10% cyclic axial strain and ±30% cyclic shear stress. |
| Customization | All of the above features can be customized according to your specific requirements. |
To review the Technical Specifications Page, please click here.
You can contact us at the addresses below for detailed information about the product.
