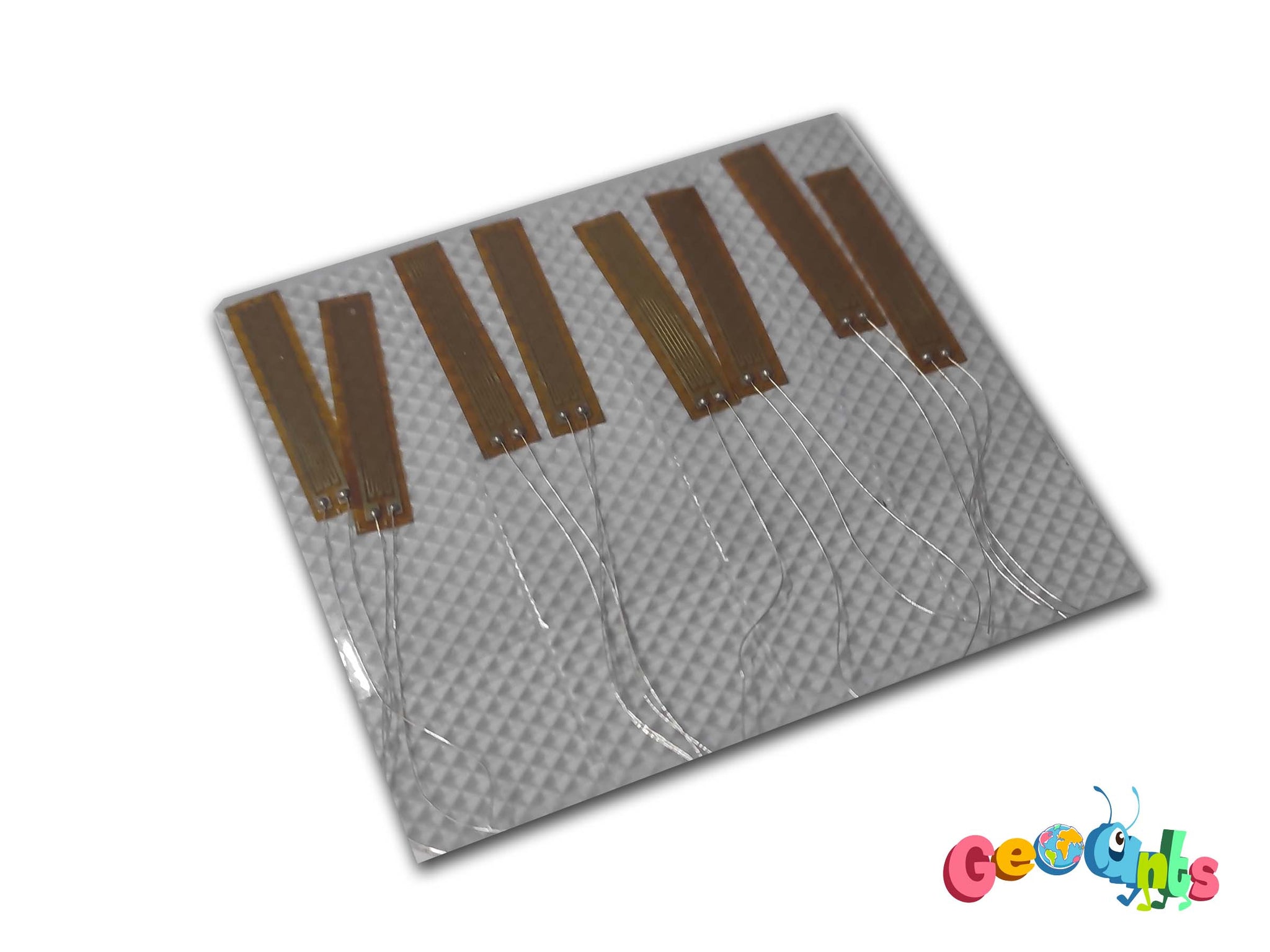

BX120 - 20AA Strain Gauge Quarter Bridge 120 ohm
BX120 - 20AA Strain Gauge Quarter Bridge 120 ohm
  • Load image into Gallery viewer, BX120 - 20AA Strain Gauge Quarter Bridge 120 ohm
  • Load image into Gallery viewer, BX120 - 20AA Strain Gauge Quarter Bridge 120 ohm

BX120 - 20AA Strain Gauge Quarter Bridge 120 ohm

Regular price
195.00TL
Sale price
195.00TL
Regular price
210.00TL
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.
Ürün için teklif al

Strain gauges are widely used in many measurement applications both static and dynamic.
A strain gauge is also sometimes called an electrical resistance strain gauge or simply a resistance strain gauge.
They are also used in dynamic measurement applications where output fluctuates greatly due to deformation of a mechanical object under test.
It is widely used for objects subjected to stress and torsion.
The property called “strain” is the ratio of the change in length of an object to its original length.
A strain gauge can measure this amount of change caused by an external force and convert it into an electrical signal that can then be converted to digital values, displayed, collected and analysed.



120 Ohm Half Bridge Strain Gauge Technical Specifications:

Resistor

Resistance

120 ohm

Tolerance to Average

± 0.2 ohm

Working Temperature

Normal Temp. -30 to 80 Degree

The Sensitivity Coefficient

2.08 ± 1%

Heat Output

Output Coefficient on Average

<2 um/m/°C

Dispersion Scope to Heat Output

<30 ± um/m

Grid Lenght

20.0 mm

Grid Widht

3.0 mm
