Strain gauges are widely used in many measurement applications both static and dynamic.
A strain gauge is also sometimes called an electrical resistance strain gauge or simply a resistance strain gauge.
They are also used in dynamic measurement applications where output fluctuates greatly due to deformation of a mechanical object under test.
It is widely used for objects subjected to stress and torsion.
The property called “strain” is the ratio of the change in length of an object to its original length.
A strain gauge can measure this amount of change caused by an external force and convert it into an electrical signal that can then be converted to digital values, displayed, collected and analysed.

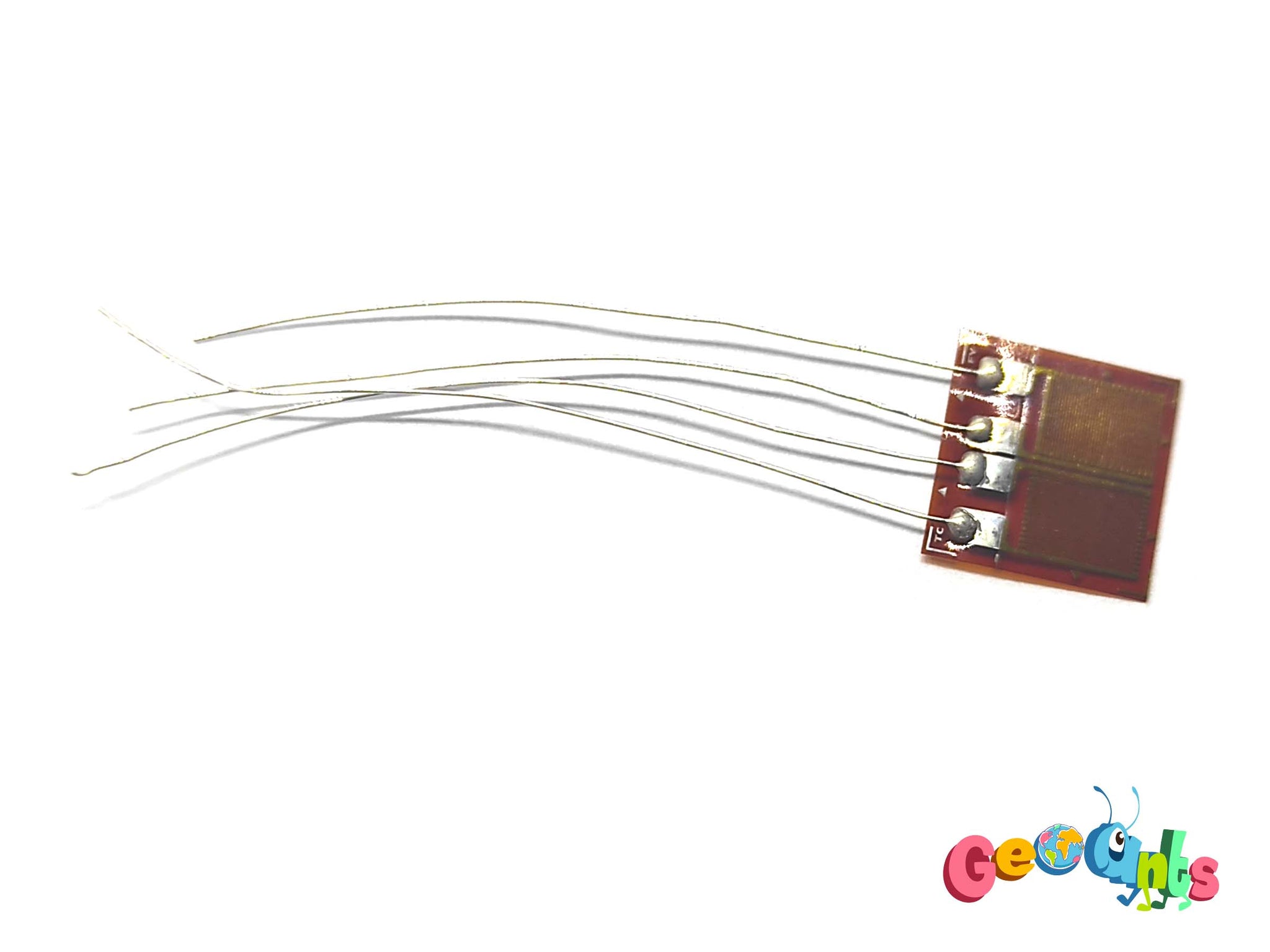

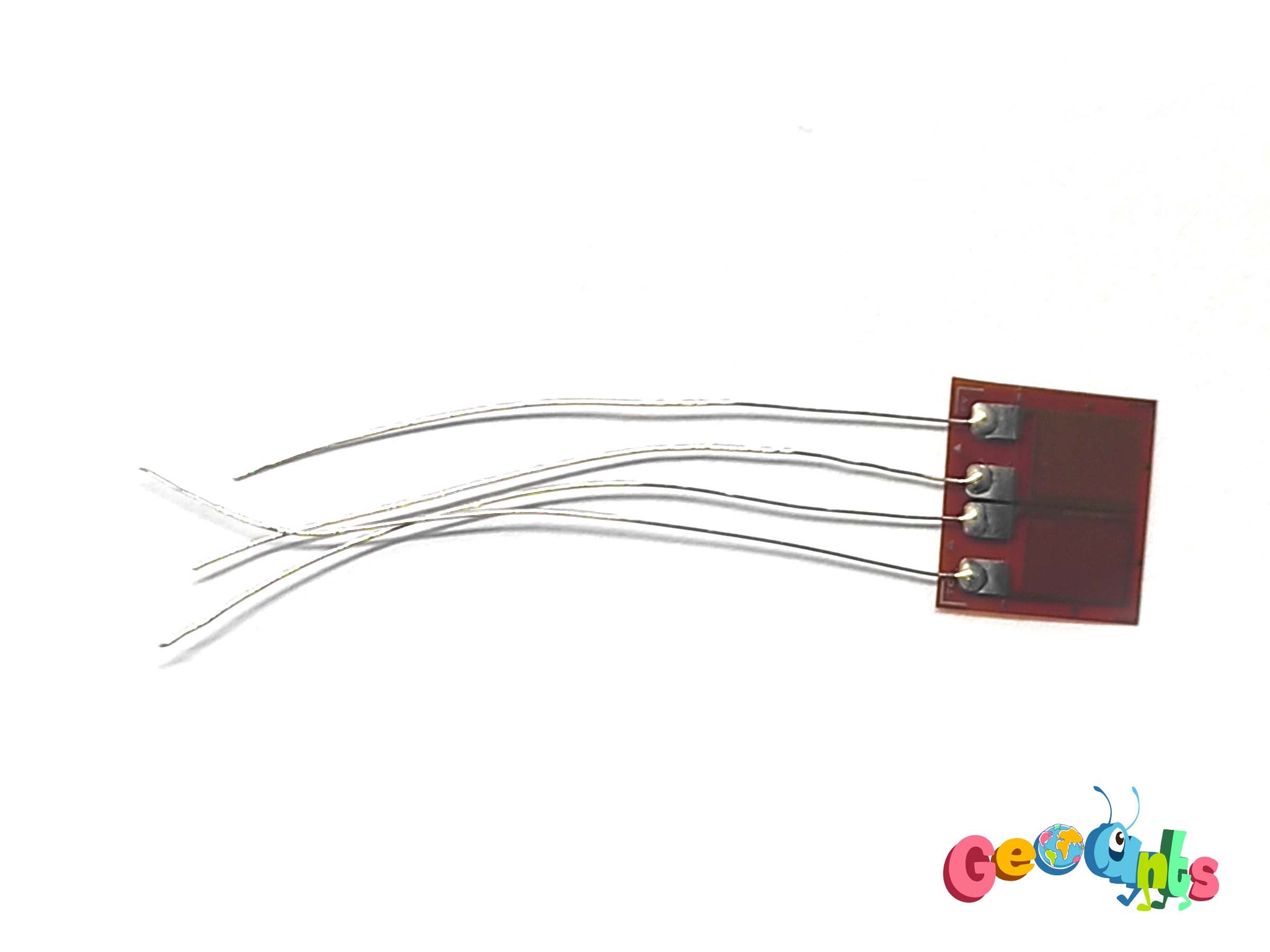

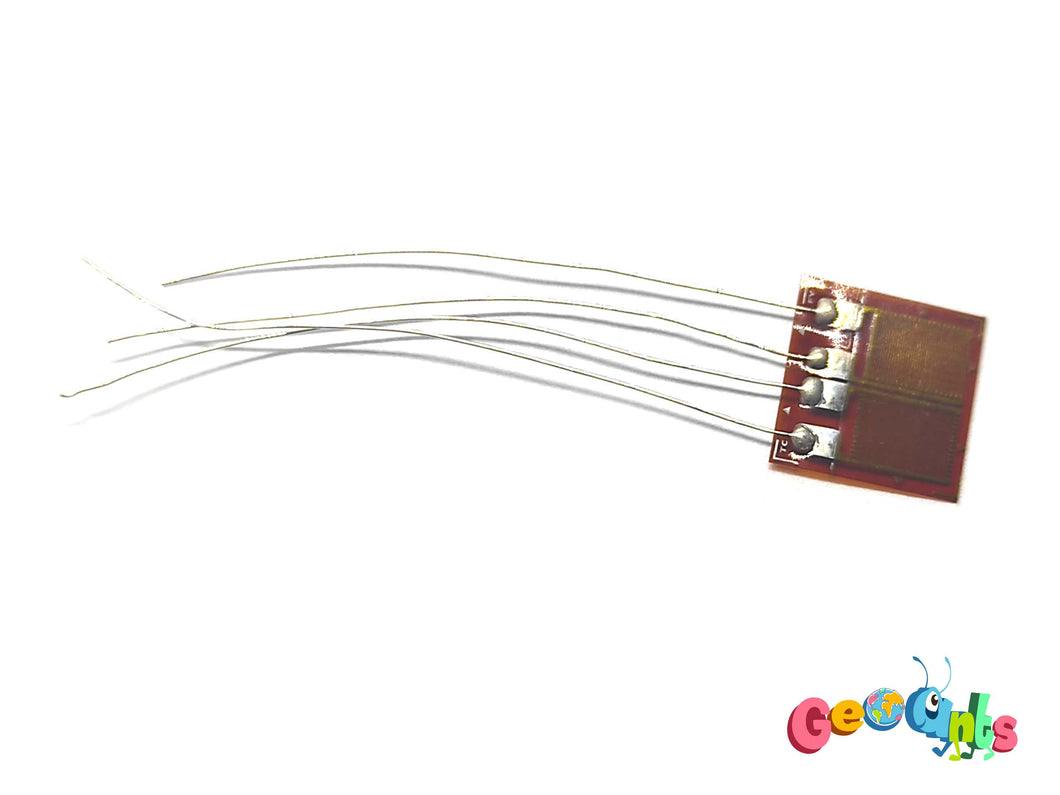

350 Ohm Half Bridge Strain Gauge Technical Specifications:
|
Resistor |
Resistance |
350 ohm |
|
Tolerance to Average |
± 0.2 ohm |
|
|
Working Temperature |
Normal Temp. -30 to 80 Degree |
|
|
The Sensitivity Coefficient |
2.11 ± 1% |
|
|
Heat Output |
Output Coefficient on Average |
<2 um/m/°C |
| Dispersion Scope to Heat Output |
<30 ± um/m |
|
|
Grid Lenght |
4.0 mm |
|
|
Grid Widht |
4.1 mm |
|
For detailed information about the product, you can contact the following contact addresses.
